Drip lines with Mini PC Non-Drain Drippers
Prevents drainage between irrigation cycles
Inbar
Inbar is a compact, integral, non-drain, pressure-compensated dripper designed for crops requiring precise and intensive irrigation intervals. The Inbar dripline’s anti-drainage mechanism ensures that the dripline remains full of water between irrigation intervals, enabling immediate and simultaneous irrigation cycles, also known as: pulse irrigation. Additionally, its anti-siphon feature prevents the suction of sand and soil into the dripper, making it suitable for subsurface drip irrigation (SDI) in challenging topographies and soil conditions.
Technical data:
Dripline diameters | 16/17/20/22/25 mm
Dripline wall thickness | 0.4/0.6/0.9/1.0/1.15/1.2 mm
Drippers spacing | 10/20/30/40/50/70/100/other cm
Dripper’s waterflow | 0.85/1.0/1.2/1.6/2.1/3.4 L/hr
Compensation range | 8-40 m
Applications | Open field | Orchard | Greenhouses | Pulse Irrigation | SDI
- Multi purpose PC dripline for high-end crops and advances irrigation practices
- Higley accurate pressure-compensating self-flushing labyrinth mechanism
- Wide range of working pressures for various topographies and crops
- Highly resistant to UV and typical agricultural fertilizers
Specifications
- Inlet filter with Non-Drain Barrier
- Anti-Siphon mechanism for prevention of sand and soil
- Wide self-cleaning labyrinth with turbulent flow to prevent particle settling
- Driplines available at diameters of 16mm, 17mm, 20mm, 22mm,25mm
Calculate Inbar driplines running length
Inbar dripline
Your pulse irrigation solution

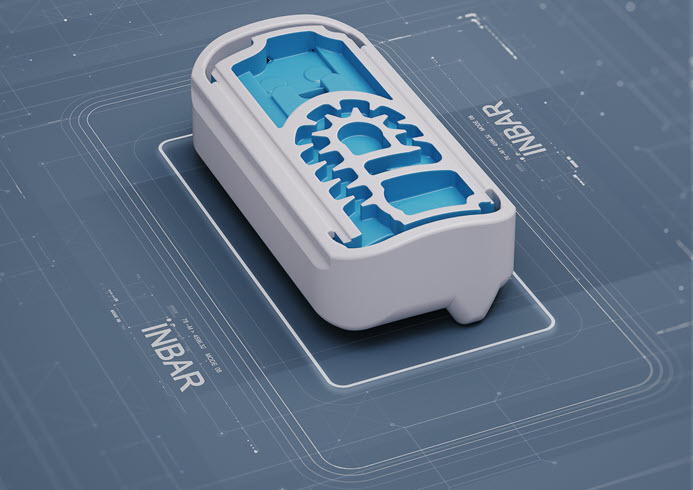

Take a closer look at Inbar driplines – a versatile solution for intensive and simultaneous irrigation, suitable for high-quality crops. Learn about the anti-drain and anti-siphon mechanisms that make the Amber laterals the right choice for growers seeking an irrigation solution for advanced agriculture.
