Driplines with mini PC anti-siphon drippers

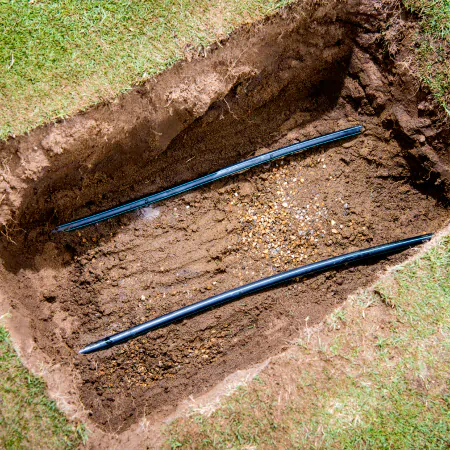

Designed for subsurface drip irrigation (SDI)

Assif

Assif is a compact, integral, pressure-compensated, anti-siphon dripper specifically designed for subsurface drip irrigation (SDI) applications. Assif driplines anti-siphon feature prevents the suction of sand and soil into the dripper, making it suitable for subsurface drip irrigation in challenging topographies and soil conditions. The Assif dripline has consistently proven to be the most reliable and cost-effective solution for subsurface irrigation of permanent crops in challenging topographies, varying water qualities, and diverse soil conditions.



Technical data:

Dripline diameters | 16/17/20/22/25 mm

Dripline wall thickness | 0.4/0.6/0.9/1.0/1.15/1.2 mm

Drippers spacing | 10/20/30/40/50/70/100/other cm

Dripper’s waterflow | 0.85/1.0/1.2/1.6/2.1/3.4 L/hr

Compensation range | 8-40 m’



Applications | Open field | Orchard | Greenhouses | SDI

Features

Features

  • Specifically designed for subsurface drip irrigation
  • Higley accurate pressure-compensating self-flushing labyrinth mechanism
  • Wide range of working pressures for various topographies and crops
  • Highly resistant to UV and typical agricultural fertilizers
  • Suitable for application of Rootguard band extruded layer to prevent roots intrusion to the dripper
Higlights

Higlights

  • Inlet Filer with Anti-Siphon Barrier for prevention of sand and soil
  • Wide self-cleaning labyrinth with turbulent flow to prevent particle settling
  • Driplines available at diameters of 16mm, 17mm, 20mm, 22mm,25mm
  • Precisely welded into medium/thick wall driplines of 0.40mm-1.25mm thickness

Calculate Assif driplines running length

Dripper
Dripper Data
Dripline Data
?
Calculation Data
?
?
-4-3-2-101234
?
Define Lateral Length
More about ASSIF
Dripper
Dripper Data
Dripline Data
P (m)
?
Slope (%)
?
?
? Spacing (cm)
+ Add More
More about ASSIF
Non-Compensated Drippers
Dripper Data
Dripline
Dripline Data
More about ASSIF
Pipe Selection

* The C value is the recommended value for this pipe type. If another value is required, please type it in the input box.

Pipe Data
?
Legend
ΔZ (m)
– Elevation Difference (+ | -)
ΔP (m)
– Frictional Head Loss
ΔH (m)
– Total Head Loss (ΔZ + ΔP)
Q (m³/h)
– Flow Rate
Vmax. (m/s)
– Flow Velocity
L (m)
– Pipe Length
Pipe Type

* The C value is the recommended value for this pipe type. If another value is required, please type it in the input box..

Flow Rate
?
Pipe Selection
Pipe Data
?
?
Legend
ΔZ (m)
– Elevation Difference (+ | -)
ΔP (m)
– Frictional Head Loss
ΔH (m)
– Total Head Loss (ΔZ + ΔP)
Q (m³/h)
– Flow Rate
Vmax. (m/s)
– Flow Velocity
L (m)
– Pipe Length
Video Thumbnail
Watch

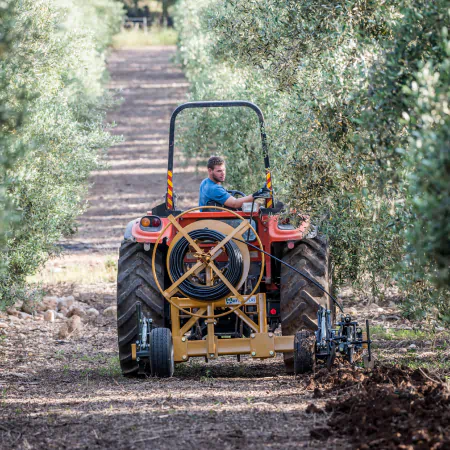

Metzer subsurface dripline installation in vineyards

Installation On‑Site

Assif subsurface drip irrigation for vineyards is buried below ground, delivering smart, precise water directly to the root zone for higher yields, healthier vines, water efficiency, and long‑lasting performance.
