LeachFlow™ R
Heap Leaching for Gold & Silver mines

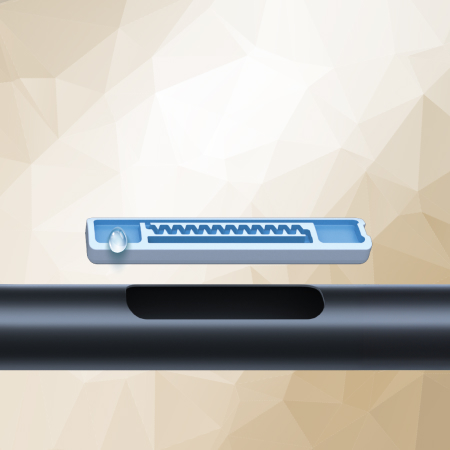

LeachFlow™ R is an integral compact pressure-compensated flat dripline engineered for uniform leaching applications under demanding field conditions. Designed for heap leaching operations in gold and silver mining, Its high clog-resistance flow path and advanced pressure-regulating mechanism ensure consistent discharge across long laterals and sloped pads. The system maintains stable and reliable flow distribution from the top of the heap to the lowest elevation, even under challenging solution quality and variable hydraulic conditions.
Specifications
Dripline diameters | 16mm, 20mm, 22mm
Dripline wall thickness | 1.0mm-1.25mm
Drippers spacing | 10 cm and up
Dripper’s waterflow | 1/1.2/1.6/2.1/3.4 L/hr
Compensation range | 8-40 m
Heap leaching applications: Gold, Silver
Features & Benefits
- Higley accurate pressure-compensating self- flushing labyrinth mechanism
- Wide range of working pressures for various topographies and heap slopes
- Highly resistant to UV and chemical abrasions
- Very low CV
- Wide water passages along the primary labyrinth
- Has the largest filtration area in its category
- The thickest silicone diaphragm in its dripper’s category ensures accuracy and high-pressure regulating performance for a long lifetime
- 100% of drippers inspected by online AI quality assurance system
- Wide self-cleaning labyrinth with turbulent flow to prevent particle settling
